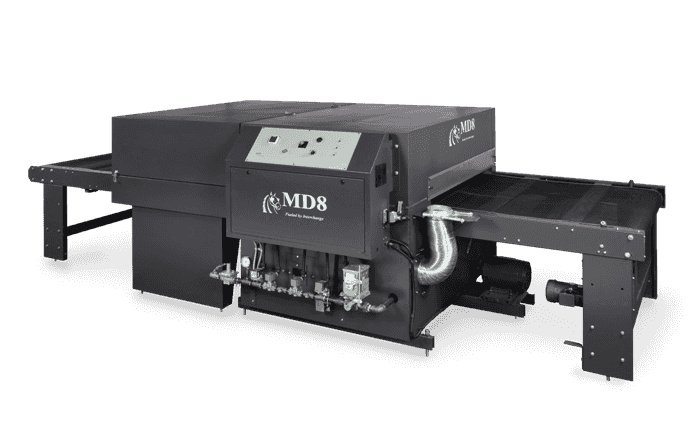

MD8 Gas Dryer

$21,000.00

The MD8 is a compact, powerful gas fired dryer designated to cure a wide variety of substrates. The MD8 has many of the features commonly found with larger dryers combined with...

SKU: N/ACategories: Conveyor Dryers Tags: CONVEYOR DRYERS, workhorse
Description

The MD8 is a compact, powerful gas fired dryer designated to cure a wide variety of substrates. The MD8 has many of the features commonly found with larger dryers combined with a space savings footprint and competitive price. This dryer is designed to cure all types of screen printed, digital printed and other coated products. It offers a patented Air Deflector Recycling System that re-circulates heated air through the heat chamber providing some of the most efficient and balanced curing on the market. The dryer process uses high velocity air flow at a process speed of 1 ft./min up to 25 ft./min. Specially formed jet nozzles in the dryer hood provide high velocity air and heat convection with a 7.5 HP blower generating balanced air flow. This air nozzle heat distribution feature is typically found only on dryers that cost much more. The blower has a re-circulating air capacity of 6,000 CFM. Cure temps range from 260 degrees to 450 degrees for efficient drying of the ink.

48"X16'(122CMX24.8M), Capacity: 600-800 P/H.

Gas: Natural or Propane 6-12" W/C 3/4" NPT

Electric: 3 Phase, 220V, 50-60HZ, 35 AMPS
