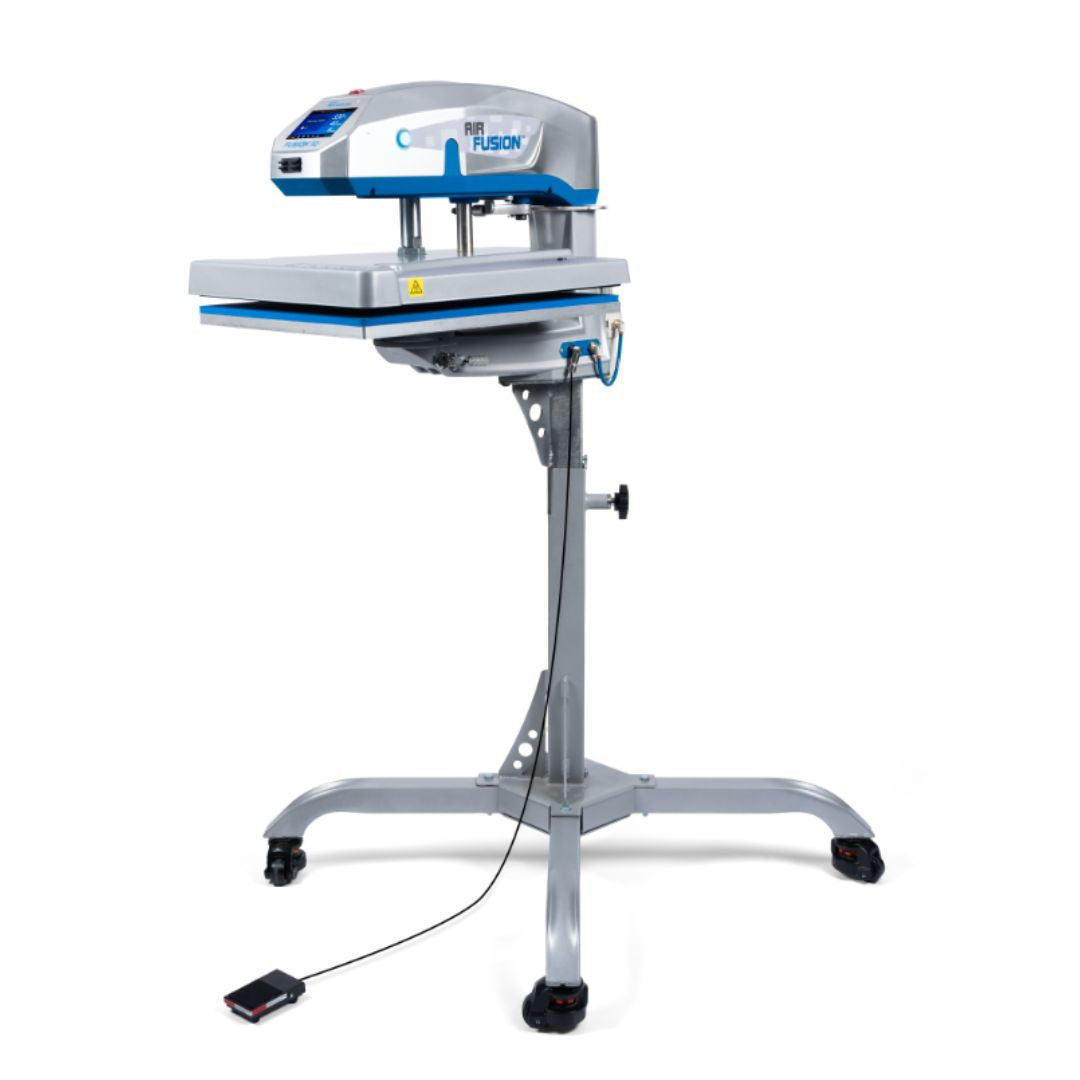

Hotronix® Air Fusion IQ® Heat Press
Hotronix® Air Fusion IQ® Heat Press
Hotronix® Air Fusion IQ® Heat Press
Hotronix® Air Fusion IQ® Heat Press

Miami Screen Print Supply

Hotronix® Air Fusion IQ® Heat Press

$5,495.00
$5,495.00
Agotado

Style: Hotronix Pedestal Air Fusion

Referencia de producto:

Hotronix® Air Fusion IQ® Heat Press

To Order, Please call us at 305-622-7532

The Air Fusion IQ® Heat Press makes heat printing a breeze. This digital heat transfer machine features air-powered operation, a heat-free workspace, and a touch-screen interface complete with stored application instructions and self-diagnostic capabilities. Through an added air compressor and two-button functionality, the Air Fusion® IQ reduces operator fatigue and is perfect for producing high volume custom apparel orders.
Innovation meets application with IQ® Heat Presses. Register your Air Fusion IQ® Heat Press with Hotronix® to access the Online Portal where you can manage users, generate usage reports, and troubleshoot technical issues.

To make sure you're getting a Hotronix®, look for the blue!

  • Made in the USA
  • Air power reduces operator fatigue in high-volume shops
  • Hands-free auto-swing creates a heat-free workspace
  • Available in Pedestal and Table Top models
  • Powered by an air compressor (not included)
  • Compatible with all of our Quick Change Platens

Additional Features

  • Online access to reporting, including total impressions, active/idle time, and average cycle time.
  • Self-diagnostics help with troubleshooting and maintenance.
  • 16" x 20" upper platen.
  • Stores hundreds of application settings.
  • Adjustable stand creates an ergonomic workspace for multiple users.
  • Threadability™ increases production – load garments once and easily rotate from front to back.
  • Exclusive Touch Screen Controller with new Multi-swipe gestures.
  • Data interface port for software upgrades.
  • Live digital time, temperature, and pressure readout.
  • Energy-saving 4 hr sleep mode.
  • Production cycle counter.
  • UL/ULC/CE/RoHS compliant.
  • Electrical Options:
    120 v; 15 amps; 1800 w
    240 v; 7.5 amps; 1800 w
  • Must have designated circuit breaker
  • 3/4 inch heat platen with fast recovering heater technology.
  • Die pressure cast 356 aluminum corrosion-free framework.
  • Multiple time and pressure settings make application a breeze.
  • Program and store frequently used applications.
  • Innovative EZ-On platen design eliminates the need for pillows or pads.
  • 120 PSI for heavy pressure application.
  • User-safe two-hand operation.
  • Digital read-outs.
  • Optional smaller interchangeable platens.
  • Proudly made in the USA.
  • Premier warranty.
  • Actual Weight: 152 lbs
  • Shipping Weight: 245 lbs
  • Dimensions: 40" x 32" x 57"
  • Shipping Dimensions: 40" x 48" x 58"


    Warranty

    • Lifetime Warranty on Heating Element
    • 5 yr on Framework
    • 2 yr on Circuit board
    • 1 yr parts/labor



    *Requires air compressor (not included) with minimum:
    1/2 horsepower and 2.5 gallon hold tank. Uses 2.3 CFM.

    Operators Manual

    Download the Hotronix Air Fusion IQ Operators Manual


    Styles available

    Air Fusion

    • Tapered roller bearings with progressive stop dampers for smooth swing operation.
    • The industry's only adjustable-height stand.

    Specifications:
    Actual Dimensions: 40" x 32" x 57"
    Actual Weight: 152 lbs
    Shipping Dimensions: 48" x 40" x 58"
    Shipping Weight: 245 lbs

    Note: Actual Dimensions reflect stand at maximum height.

    Operators Manaual
    Download the Hotronix Air Fusion Operators Manual.

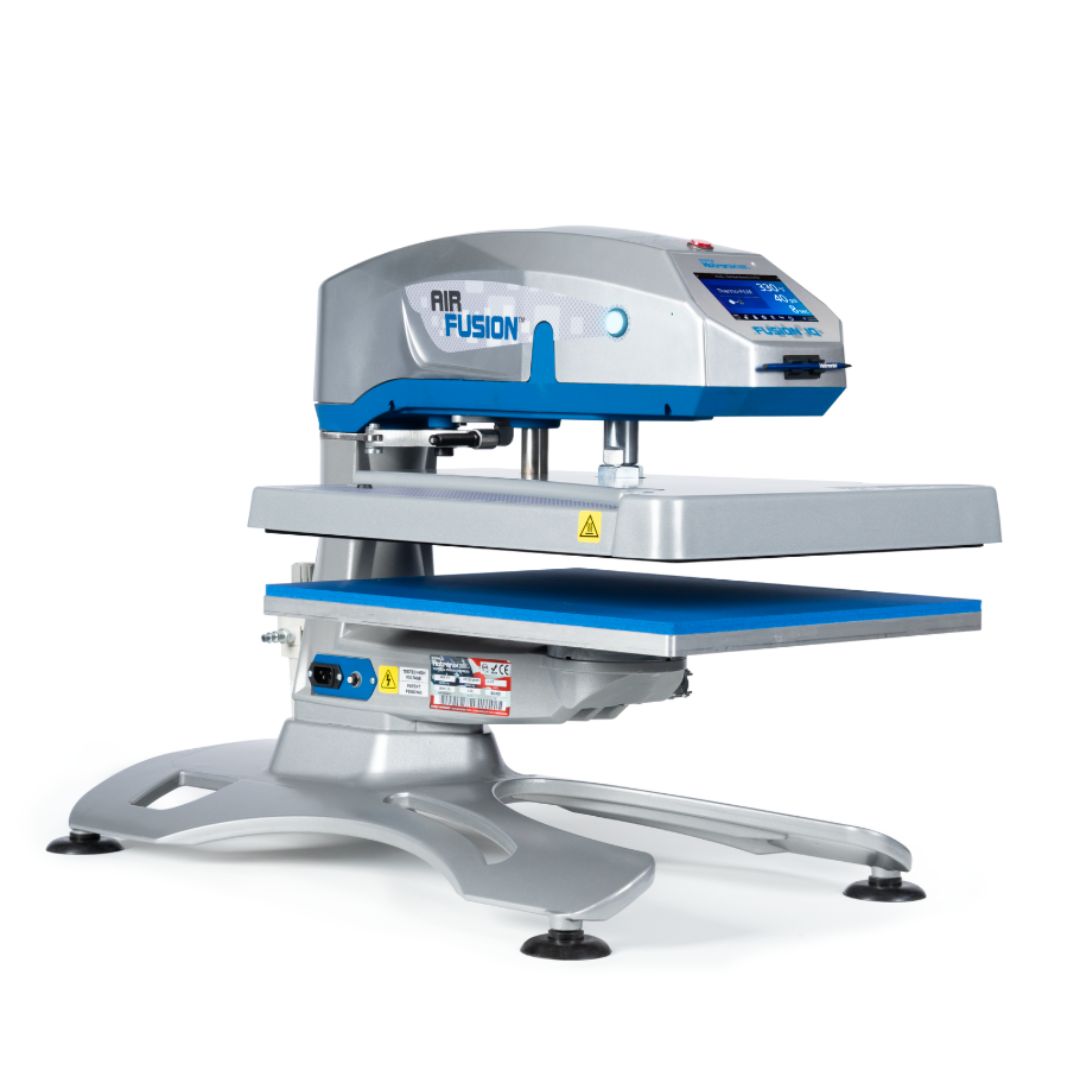

    Tabletop Air Fusion

    With the same great features, including touch screen controller, semi-automatic operation, and Threadability™, the Table Top Air Fusion harnesses the power and convenience of the Air Fusion into a space-saving unit.

    Specifications:
    Actual Dimensions: 34" x 18" x 24"
    Actual Weight: 126 lbs
    Shipping Dimensions: 37" x 24" x 24"
    Shipping Weight: 150 lbs

    Hotronix Premier Warranty

    • Lifetime Warranty on Heating Element
    • 5 yr on Framework
    • 2 yr on Circuit board
    • 1 yr Parts/Labor


    Patents

    Hotronix® Air FUSION® Heat Press is protected by U.S. Patent No: 8,418,739
